Challenges in Residential Site Work
Cut and fill on residential construction sites often bring unexpected challenges. Removing embedded rocks, pulling out old concrete, and breaking through packed clay can take extra time. These tasks delay projects and increase costs.
Why One Machine Matters
In today’s competitive market, contractors can’t afford delays or extra equipment. That’s why Borg Civil in Sydney added the new Takeuchi TL12V2 vertical lift track loader to its fleet. The machine offers more power and a higher bucket lift, making it easier to handle tougher sites.
Power That Speeds Up Preparation
The TL12V2 loader was designed to improve speed site preparation. Its vertical lift design allows operators to load trucks quickly and move heavy material with less effort. The added lifting capacity also helps when handling bulky loads, saving both time and fuel.
A Perfect Fit for Tough Sites
Borg Civil already owned several Takeuchi loaders, but the TL12V2 stood out as an upgrade. With its stronger build and advanced features, it allows operators to finish demanding tasks faster and with fewer machines on site.

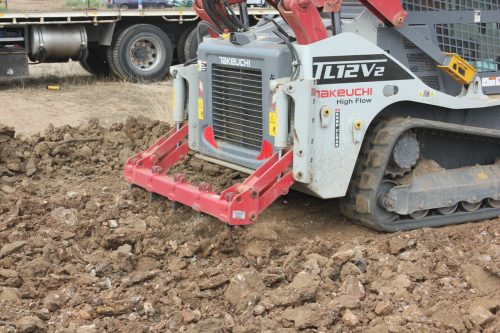

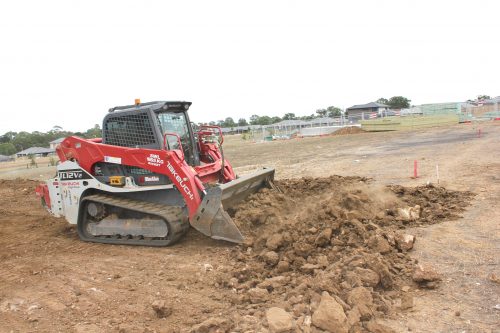

The addition of a rear ripper bar which is monitored by the rear camera completed the package.A residential construction site in Southwest Sydney showed that this one machine could easily and very quickly complete a typical cut and fill operation to prepare for a concrete slab.Borg Civil’s operations manager Jerry Zoric said “we have had the new Takeuchi loader for just a couple of months. We have four Takeuchi radial lift loaders and thought it was worth trying this new TL12v2 vertical lift machine to see how it performed. It is a standard factory fitted machine with the addition of the ripper bars which we need for situations such as we are experiencing today.“Were impressed with the construction specification – – reverse cameras and the excellent appointments in the cabin. It’s a great machine and has more than enough power needed for this type of application.

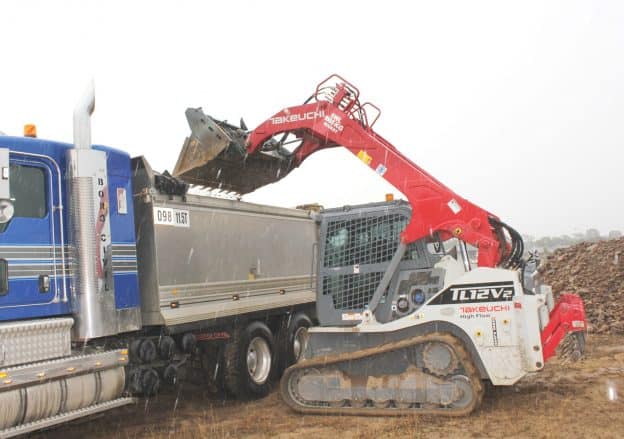

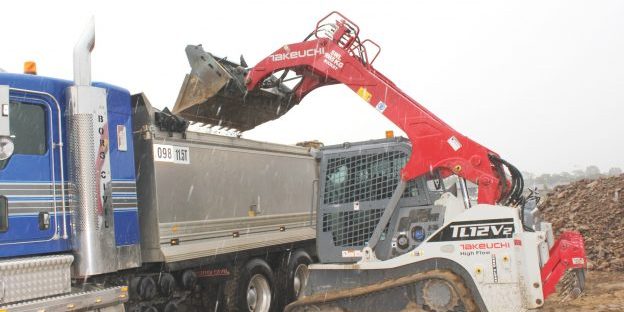

We’re particularly impressed with the height of the vertical lift which enables us to pile spoil quite high within a constrained footprint which makes it easy for loading the truck.The high lift lets us get the bucket right over the edge of the truck to quickly load.“While the cabin is just 77 millimetres wider than the standard TL 12 model, it feels a lot bigger and there has obviously been a lot of thought what into placement of controls and the ease in which all functions can be selected and manipulated.
“From an operator’s viewpoint, it’s considerably more comfortable. Placement of the lifting booms has been well-designed to optimise operator visibility, which is a real bonus when you’re working the bucket to cut to tight mark out lines.“
Our machines are used for contract work so they used constantly and need to be super reliable to help us meet our tight timelines.Weighing in at just under six tonnes, this loader is claimed to be the largest and most powerful machine in its class. Delivering up to 45-percent greater operating capacity over the current TL12 radial lift model, this machine has been virtually redesigned from the ground up.Powering the loader and its systems is a Kubota 3.8 litre diesel engine that produces 81.8 kW and compliant with U.S. EPA Final Tier 4 /EU Stage IV emissions.
There’s an electrical harness that runs down the loader’s frame that plugs into the hand control. This means you can operate attachments that require electrical functions such as a tilting dozer blade, laser blade or a profiler.Because the engine is electronically controlled, the operator is able to select engine functions through the dash panel. This includes adjustment of horsepower or selection of economy mode for fuel economy when undertaking light duty work.
